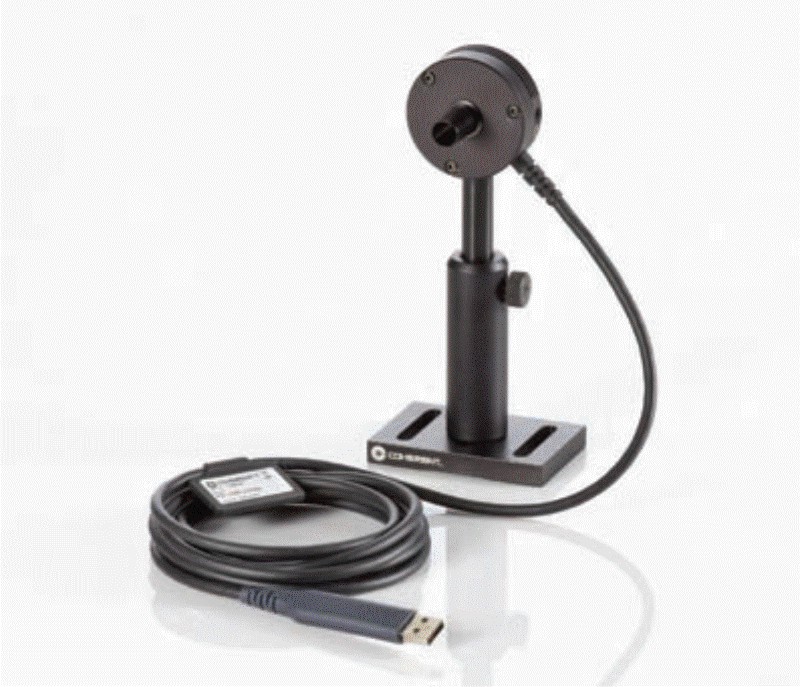

USB UV/VIS Quantum Power Sensor -

Item #: COH1168337
Regular price: $1,785.00

Product Description

USB UV/VIS Laser Power Sensor, >100 mWatt continuous.


The PowerMax-USB sensors provide plug and play laser power measurement directly on a PC without the need for additional electronic instrumentation. PowerMax PC application software is included with the USB sensor.

UV/VIS Specifications

Wavelength Range
325 - 1064 nm
Power Range
10μW to >100 mW
(wavelength dependent)
Intermittent Power
NA
Maximum Power Density
20 W/cm2
Maximum Energy Density
Active Area Diameter
10 mm
Calibration Wavelength
514 nm
Calibration Uncertainty
2%
Response Time
Detector Coating
Silicon Photodiode
Dimensions
Ø51 x 43 mm
RoHS Compliant
Yes



OP-2-VIS Laser Power Meter Sensor for use with FieldMate, FieldMaxII TO, FieldMaxII TOP, LabMax-Touch, and LabMax-Touch Pro
