Autocollimator

Autocollimator

Autocollimator Alignment Animation

Click to Enlarge

An autocollimator is designed for applications where it is desirable to check the mutual alignment of two or more reflecting surfaces. The operator observes the images from these surfaces through the eyepiece of the autocollimator, as a check for mutual alignment of the surfaces.

The AC100 and AC50 Autocollimators are used to aligning laser optical components and they are ideally suited for alignment of the mirrors, laser rod and Q-switch of the Nd: YAG laser. The optical elements on the laser rail reflect and appear as bright images in the Autocollimator. When all reflecting images are superimposed on each other, the optical rail is aligned. The Autocollimator is primarily designed for use on plano/parallel reflective surfaces.

Autocollimator User's Guide

The AC100 and AC50 Autocollimators are available unmounted, or with mounts for Control Laser, Lee Laser, and ESI Laser.
See ordering information below for individual part numbers.

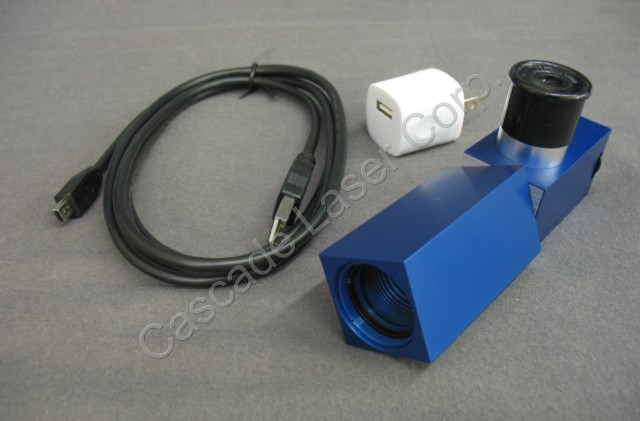

AC100 Autocollimator

    AC100 Pinhole-type Alignment Autocollimator
  • 5 meter maximum working distance
  • 1 degree maximum field of view
  • 5 arc-second maximum resolution
  • Eyepiece rotates for comfortable viewing
  • Light source: long lasting white LED (variable intensity)
  • AC Power adapter and 6 foot cable included, 120 - 240 VAC.
    Autocollimator can be run directly from a USB on a laptop computer with the 6 foot cable
  • Optional rechargeable battery kit will provide hundreds of hours of operation




AC50 Autocollimator

    AC50 Pinhole-type Alignment Autocollimator
  • Maximum field of view of 1 degree
  • Maximum working distance of 5 meters
  • Maximum resolution of 5 arc-seconds
  • Pinhole image diameter subtends 100 arc-seconds
  • Light source: single, white incandescent bulb (variable intensity)
  • Complete with plug-in power supply (specify 115V or 220V)
  • Optional eyepiece reticle (10x10 grid or crosshairs w/concentric circles)
  • Optional 2-axis adjustable stand
