Find-R-Scope IR Viewer 350-1350nm
Product Description

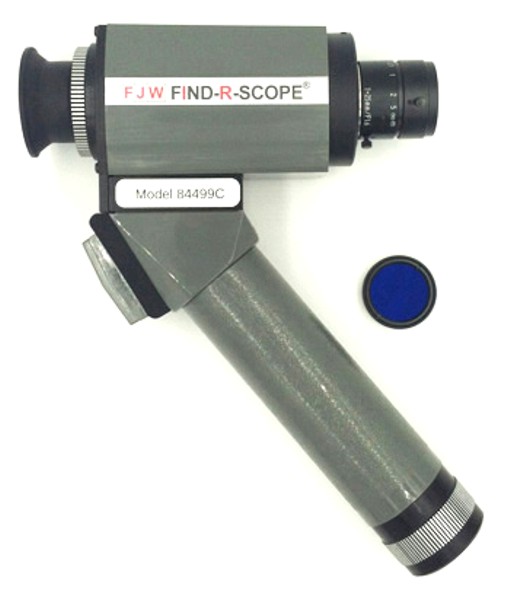

Find-R-Scope IRV84499C 350-1350nm
Includes:
Carrying Case, Battery, Manual, and 12 month Limited Warranty
The FIND-R-SCOPE® is a self contained, hand-held infrared viewer operating in the near-infrared range of the spectrum. A high-resolution image converter tube and high voltage power supply combine with precision optics to permit a clear view of objects or images which could not otherwise be seen by the naked eye. The FIND-R-SCOPE® has a wide variety of applications in many different industries. The close-up lens allows for viewing within 4", with optional close-up lens, to align and verify fiber optic sources. IR filters increase the signal-to-noise ratio by blocking visible light when inspecting infrared emitting diodes, aligning laser systems, and examining art and other historical documents. Other applications include; low light surveillance, biological research, hot-spot observation, clinical medicine, and viewing in photographic darkrooms.
| Specifications | |
Spectral Sensitivity |
350 to 1350nm |
Light Sensitivity |
Tested with 1350nm from 400uW LED up to 8" |
Peak Sensitivity |
800 & 350nm |
Field of View |
24 degrees |
Magnification |
1:1 |
Focal Range |
200mm (7.8") to infinity |
M.O.D. with IRVCU400 Close up Lens |
110 to 250mm (4.3" to 9.8") |
Resolution |
40 lines/mm min. |
Battery Life using stanard C-Cells |
>250 hrs (intermittent) / 98 hrs continous |
Power Supply Life |
2500 hours |
Dimensions |
6.5" x 2.1" x 7.5" / 16.5 x 5.3 x 19 cm |
Weight |
21oz / 590g |
Operating Temp. |
-25F to 115F / 32C to 46C |
IRV84499C and IRV84499C-5 Find-R-Scope Accessories
