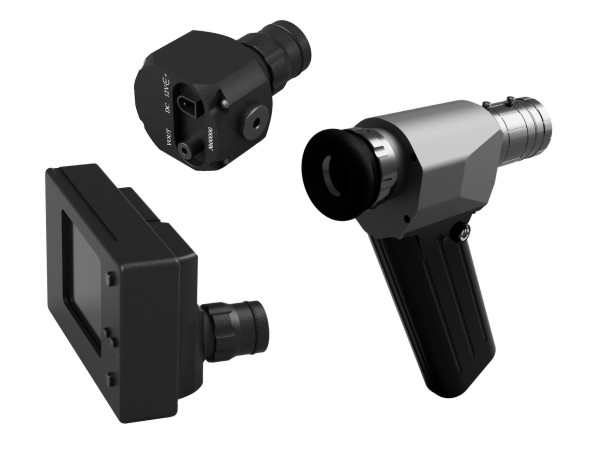

IRVI Infrared Viewers and Cameras

High quality, cost-effective, wide spectral range near infrared viewers and CCD/CMOS cameras.

IR viewers and IR cameras are used to observe, register, and record both indirect and direct radiation of IR lasers, Light emitting diodes (LED’s), dye and other IR-sources.
They are ideal for IR-laser beam alignment and inspection, optical fiber alignment, telecommunications, photo processing, surveillance and investigation in botany, biophysics, medicine, forensics and art restoration, infrared microscopy, fluorescence, etc.

    We are providing compact, wider spectral range newest technology products:
  • Hand held ergonomic infrared viewers based on high-grade image converter with spectral range up to 2000nm.
  • CMOS type IR digital cameras with the newest technology CMOS sensor, micro lenses and intensifying cascades in each element. (Spectral range is 400 – 1700nm)
  • CCD type IR cameras which are based on high-sensitivity, low-noise silicon CCD sensor and two-photon absorption phenomenon. Superior image quality is obtained with micro lens system and special coating layer on a silicon. Those features allow to operate camera in much winder spectral range (400 – 1700nm).




Infrared Viewer
Spectral
Sensitivity
Lens Focal Length
CA=close-up adapter
Battery Life
Abris-M 1300 1X
Abris-M 1300 2X
400 - 1300 nm 26mm f1.4
50mm f1.8
5.9" (2" with CA)
19.7" (5.9" with CA)
35 hours
wth 1 AAA
Abris-M 1700 1X
Abris-M 1700 2X
400 - 1700 nm 26mm f1.4
50mm f1.8
5.9" (2" with CA)
19.7" (5.9" with CA)
35 hours
wth 1 AAA
Contour Series
Cameras
400 - 1700 nm 26mm f1.4 7.9" (4" with CA) hours
wth 4 AA
Abris-M 2000 1X
Abris-M 2000 2X
400 - 2000 nm 26mm f1.4
50mm f1.8
5.9" (2" with CA)
19.7" (5.9" with CA)
35 hours
wth 1 AAA
