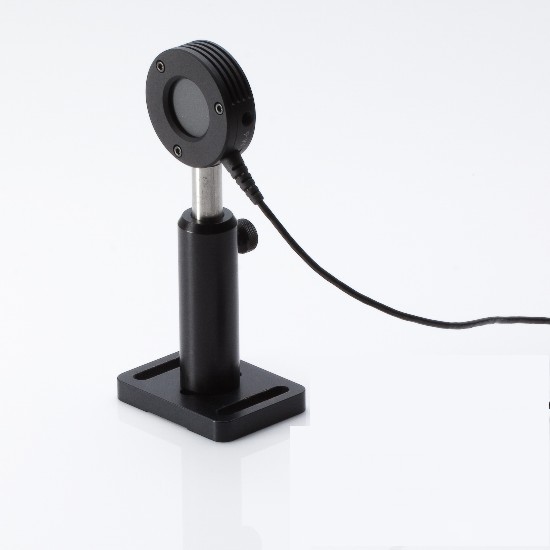

USB J-25MB-LE Laser Energy MaxSensor

Item #: COH1191441
Regular price: $2,745.00

Product Description

USB J-25MB-LE EnergyMax Sensor.

The EnergyMax-USB sensors provide plug and play laser power measurement directly on a PC without the need for additional electronic instrumentation. EnergyMax PC application software is included with the USB sensor.

J-25MB-LE Specifications

Wavelength Range
190 - 12000 nm
Energy Range
50 μJ to 50 mJ
Maximum Energy Density
500 mJ/cm2 10ns @ 1064nm
Maximum Average Power
5 W
Maximum Pulse Width
17 μsec
Maximum Rep Rate
1000 pps
Active Area Diameter
25 mm
Calibration Wavelength
1064 nm
Calibration Uncertainty
Detector Coating
Ø51 x 17 mm
RoHS Compliant

J-25MB-LE RS232 Laser Power Sensor

J-25MB-LE Laser Power Meter Sensor for use with FieldMaxII TOP, FieldMaxII P, LabMax-Touch, LabMax-Touch Pro
