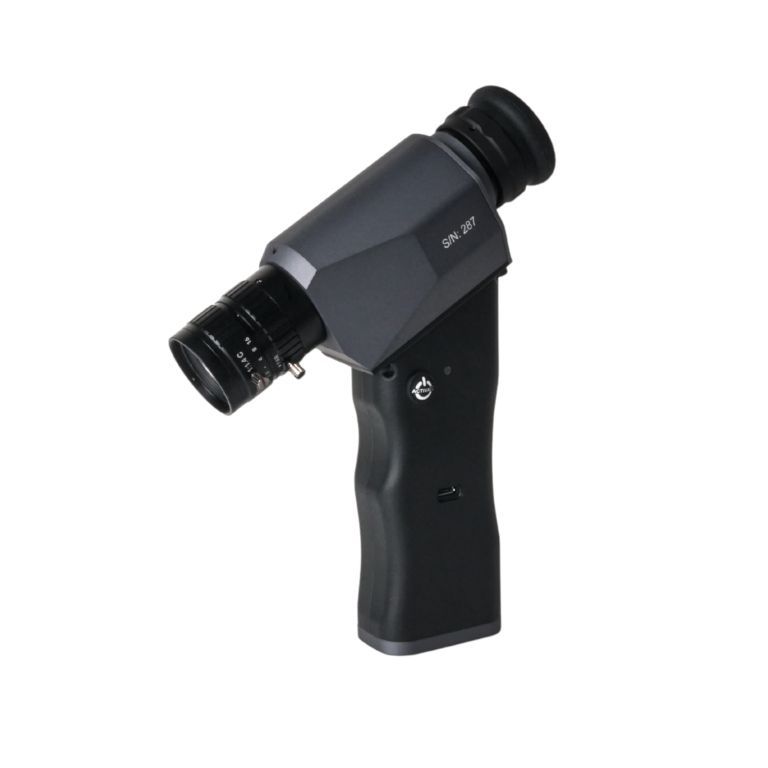

Abris-M Infrared Viewer 350-2000nm with 1X Lens

Item #: IRVI-2000-1
Regular price: $2,390.00
Contact us for order info.

Product Description

Due to supply chain issues with this vendor, we have decided to temporarily stop providing their products until further notice.
Please check our Find-R-Scope viewers at the following link:
Find-R-Scope Products

Abris-M 350-2000nm with 1X Lens


Abris-M 2000 1X 26mm lens

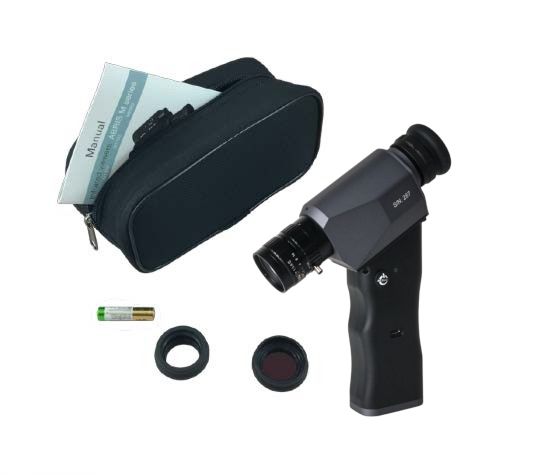

Carrying case, Battery, Handle, Light blocking filter, Manual, and 24 month Limited Warranty

High performance image conversion IR viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.

(IR) Infrared viewer is based on a first generation high-grade image converter that has an electro-static focusing system, photocathode S-1+ with increased concentration of oxygen and screen of type P-20 with maximum of luminescence at 550nm.

Infrared viewer focus emitted or reflected light from a chosen subject into the image tube where electron image is generated. When powered (with battery or power supply) the 16-18 kV voltage is generated required to accelerate the electron image into the output phosphor screen. The fluorescent green light output (550 nm) is observed via an adjustable eyepiece lens.

    Typical applications:
  • - Laser alignment and safety. (IR) Infrared viewer is ideal for alignment of infrared laser beam and optical components in near infrared systems.
  • - Semiconductors inspection. With a microscope adapter IR viewer can be used to view through the surface of silicon and gallium arsenide wafers.
  • - Forensics and art restoration
  • - Photo processing
  • - Thermal imaging

Spectral Sensitivity
350 to 2000nm
Field of View
40 degrees
1:1 26mm f/1.4 Lens
Focal Range
150mm / 5.9" (50mm / 2" with distance ring) to infinity
60 lines/mm min.
Battery Life using standard AAA-Cells
35 hrs continuous
5.58" x 3.1" x 2.0" / 140 x 78 x 52 mm
13oz / 380g
Operating Temperature
-14F to 104F / -10C to 40C

Abris-M Accessories

1X 26mm f1.4 lens 2X 50mm f1.8 lens 1X Lens Neutral Density Filter 2X Lens Neutral Density Filter Distance Ring Iris Diaphragm C-Mount Camera Adapter Microscope Adapter Video Adapter IR Iluminator
