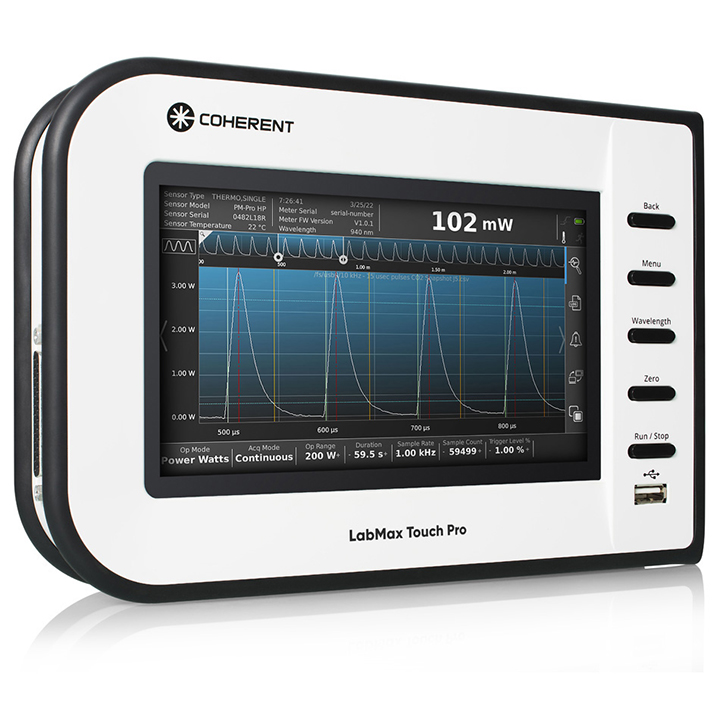

LabMax-Touch Pro Laser Power Meter
LabMax-Touch Pro Laser Power Meter (RoHS)
For thermal and optical sensors; displays beam position when using LM Series heads.
Measures Laser Power Ergonomic design enhances user experience. Compatible with LM- and PM-model thermopile and optical sensors with beam position display. Data logging to onboard memory and USB flash drive, and Ethernet, USB, and RS232 PC interfaces. RoHS Compliant. The LabMax-Touch Pro laser power meter is appropriate for anyone who needs to analyze and monitor laser output. Data analysis can be achieved via statistical and trend analysis and stored in onboard flash memory for future retrieval with the File Manager tool. Data can also be analyzed directly on a PC through Ethernet, USB, and RS232 serial connections, or by logging data to a USB flash drive attached directly to the meter. Installable applications software and LabView ® drivers are provided to support PC interfacing. The LabMax-Touch display and meter can be positioned at many different angles so customers can place it within the limited bench space typically available in a laser lab and still easily view the display. There is a HDMI video output.
The LabMax-Touch Pro laser power meter is directly compatible with most Coherent thermal and semiconductor sensors and displays beam position for quick and accurate setup. These sensors offer wavelength coverage from 190 nm to 12 µm and measure from nW to kW.
Name |
LabMax-Touch Pro |
Input Range, Thermopile Sensors |
1 µW to 30 kW with 100 nW resolution (LM Model) |
Input Range, Optical Sensors |
100 pW to 5W with 10 pW resolution |
Measurement Resolution |
0.1% of full-scale |
Noise, Thermopile Sensors |
1.2 µV (LM Model) |
Power Sampling Rate |
10 Hz |
Accuracy (Digital Meter) |
±1.0% of reading |
Accuracy - System |
Meter accuracy + sensor accuracy |
Accuracy - Analog Output |
±1.0% |
Display |
1024 x 600 pixel color TFT 7" LCD, LED backlight, capacitive touch screen |
Statistical Analysis |
Min., max., mean, range, standard deviation, energy dose, and stability. Trend charting, tuning, positional display, and analysis of beam stability. Pulse analysis, Pulse shape, and high speed analytics with PowerMax Pro Sensors |
Computer Interface |
Ethernet, USB, and RS-232 |
Analog Output |
0.02 to 1, 2, or 4 VDC (selectable) |
Analog Output Update Rate |
500Hz |
Instrument Power |
90 to 260 VAC, 50/60 Hz AC power adapter (incl.) |
Temperature (Operating) |
0°C to 40°C (32°F to 104°F) |
Temperature (Storage) |
20°C to 60°C (-4°F to 140°F) |
Size (H x W x D) |
238 x 162 x 51 mm (9.4 x 6.4 x 2.0 in.) |
Part Number |
COH2256258 |
Part Number |
Description |
Power Range (W) |
Power Resolution (W) |
Max Pulse Length (S) |
Max Joules |
Min Joules |
---|---|---|---|---|---|---|
COH1098304 |
LM-10 HTD Sensor |
0.01-10 |
0.001 |
0.11 |
10 |
.05 |
COH1098320 |
LM-45 HTD Sensor |
0.1-45 |
0.01 |
0.12 |
10 |
.07 |
COH1098328 |
LM-3 HTD Sensor |
0.01-3 |
0.001 |
0.11 |
10 |
.05 |
COH1098394 |
LM-150 FS HTD Sensor |
0.1-150 |
0.01 |
0.12 |
10 |
.07 |
COH1098404 |
LM-30 V Sensor |
0.1-30 |
0.01 |
0.17 |
10 |
.07 |
COH1098456 |
LM-20 HTD Sensor |
0.1-20 |
0.01 |
0.12 |
10 |
.07 |
Part Number |
Description |
Max Power (W) |
Active Area Diameter (mm) |
Max Average Power Density (kW/cm2) |
Max Pulse Energy Density (J/cm2> |
---|---|---|---|---|---|
COH1098329 |
PM2 Sensor |
2 |
19 |
26 |
0.6 |
COH1097901 |
PM10 Sensor |
10 |
19 |
26 |
0.6 |
COH1098314 |
PM30 Sensor |
30 |
19 |
26 |
0.6 |
COH1098498 |
PM30X Sensor |
30 |
19 |
26 |
0.6 |
COH1098329 |
PM100-19C Sensor |
100 |
19 |
26 |
0.6 |
COH1098444 |
PM150-19C Sensor |
150 |
19 |
26 |
0.6 |
