Contour-M Infrared Camera

Item #: IRVI-CONT-M
Regular price: $2,410.00
Contact us for order info.

Product Description

Due to supply chain issues with this vendor, we have decided to temporarily stop providing their products until further notice.
Please check our Find-R-Scope viewers at the following link:
Find-R-Scope Products



Contour-M 400-1700nm IR Camera

Includes:


Contour-M 1X 26mm lens Dinstance Ring

Carrying Case, Batteries, AC/DC Adapter, Light blocking filter, Manual, and 24 month Limited Warranty

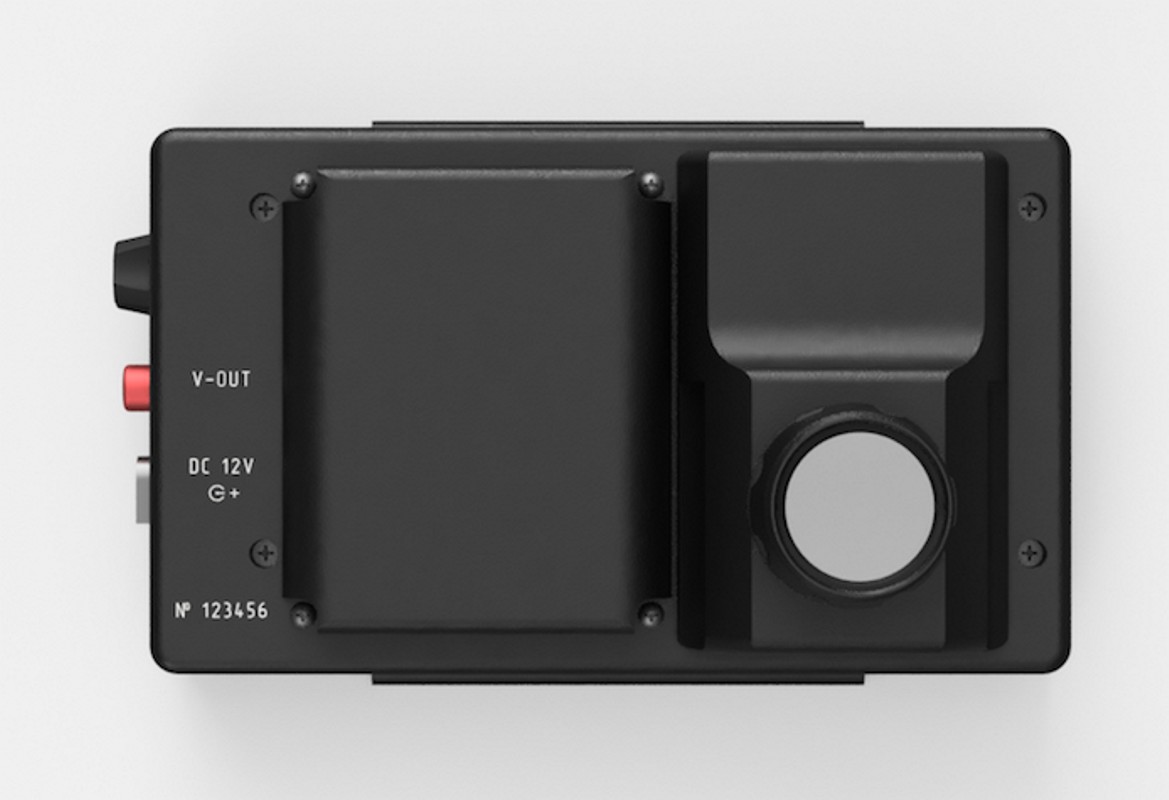

The near infrared CONTOUR-M camera has a built in 4 inch display. Camera is designed for observation, registration and recording radiation in near infrared zone emitted by infrared sources such as GaAs IR LED, diode or solid-state lasers as well as for use in infrared microscopy, infrared luminescence, examination of documents, forensics, art restoration and etc.

The CONTOUR-M is ideal for the alignment of infrared beam and optical components in infrared systems in the 400-1700 nm spectral region. With Built-in 12V external charger and battery compartment ensures longer and comfortable operation of device.

The CCD camera is based on a high-sensitive low-noise silicon CCD sensor and two-photon absorption phenomenon. Superior image quality is obtained with micro lens system and special coating layer on a silicon. The four-stage system of automatic control and superior anti-blooming feature allows operation in a much wider spectral range. The device can be used hand-held or with tripod.





Specifications
Spectral Sensitivity
400 to 1700nm
Field of View
10 degrees
Focal Range
200mm / 7.9" (100mm / 4" using distance ring) to infinity
Resolution
300 lines/mm max.
Video Output
4" Display & CCIR standard composite video
Battery Life using 4 rechargable AA-Cells
2.5 hrs continuous
Dimensions
6.3" x 3.7" x 3.9" / 160 x 95 x 100 mm
Weight
27oz / 770g
Operating Temperature
-41F to 104F / 5C to 40C

Contour-M Accessories

Iris Diaphragm 1X Lens Neutral Density Filter Microscope Adapter
