VIR-1700 Infrared Viewer 350-1700nm w/ 2X Lens

Item #: IRVI-1700-2
Regular price: $2,900.00

Product Description

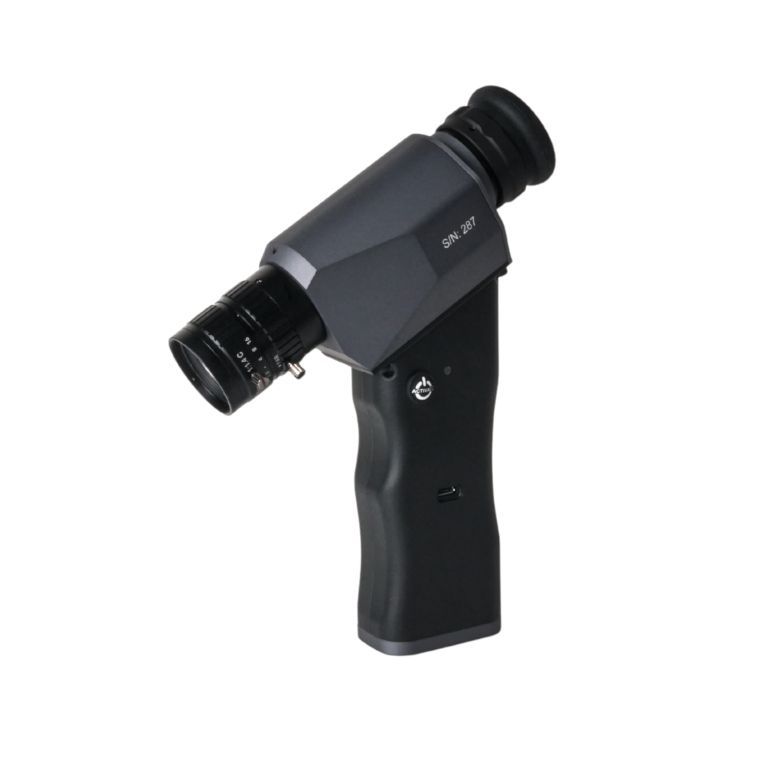

IRVI VIR-1700 Infrared Viewer (350-1700nm) w/ 2X Lens

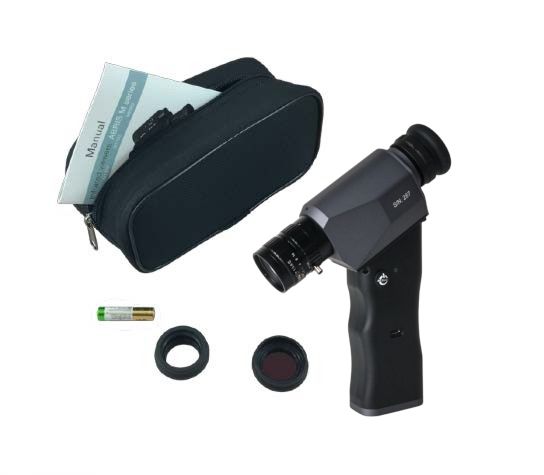

This kit also includes:
Carrying case, Charger, Handle, Light blocking filter, Manual, and 24 month Limited Warranty


High performance image conversion IR viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.

(IR) Infrared viewer is based on a first generation high-grade image converter that has an electro-static focusing system, photocathode S-1+ with increased concentration of oxygen and screen of type P-20 with maximum of luminescence at 550nm.

Infrared viewer focus emitted or reflected light from a chosen subject into the image tube where electron image is generated. When powered (with battery or power supply) the 16-18 kV voltage is generated required to accelerate the electron image into the output phosphor screen. The fluorescent green light output (550 nm) is observed via an adjustable eyepiece lens.

    Typical applications:
  • - Laser alignment and safety. (IR) Infrared viewer is ideal for alignment of infrared laser beam and optical components in near infrared systems.
  • - Semiconductors inspection. With a microscope adapter IR viewer can be used to view through the surface of silicon and gallium arsenide wafers.
  • - Forensics and art restoration
  • - Photo processing
  • - Thermal imaging





Specifications
Spectral Sensitivity
350 to 1700nm
Field of View
20 degrees
Magnification
2:1 50mm f/1.8 Lens
Focal Range
500mm / 19.685" to infinity - (150mm / 5.90" to infinity with distance ring)
Resolution
60 lines/mm min.
Battery Life - fully charged
50 hrs
Dimensions
6.02" x 7.24" x 2.00" / 153 x 184 x 51 mm
Weight
14oz / 400g
Operating Temperature
-14F to 104F / -10C to 40C


IRVI Accessories

1X 25mm f1.4 lens 2X 50mm f1.8 lens 1X Lens Neutral Density Filter 2X Lens Neutral Density Filter Distance Ring Iris Diaphragm C-Mount Camera Adapter Microscope Adapter Video Adapter IR Iluminator
